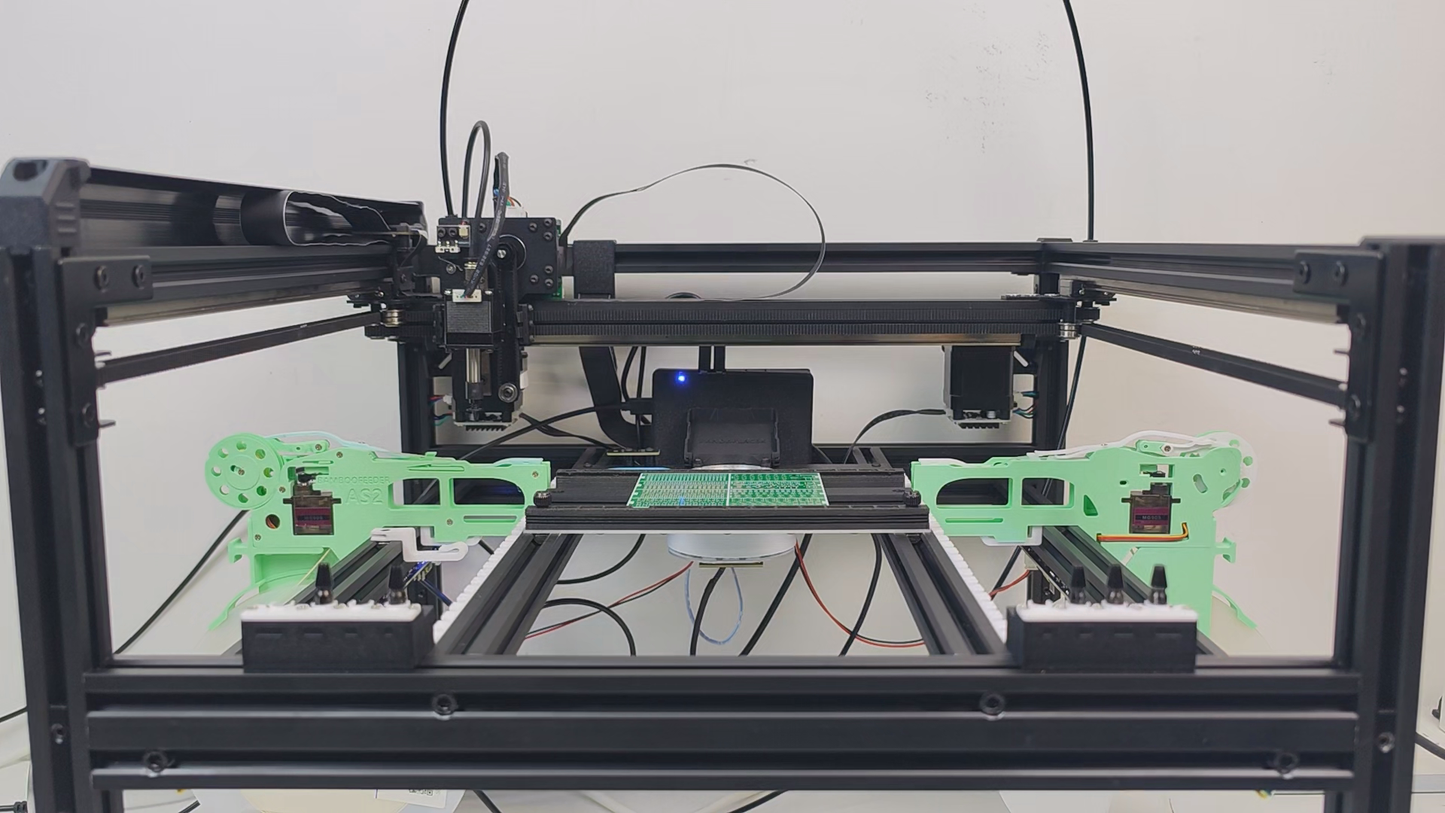

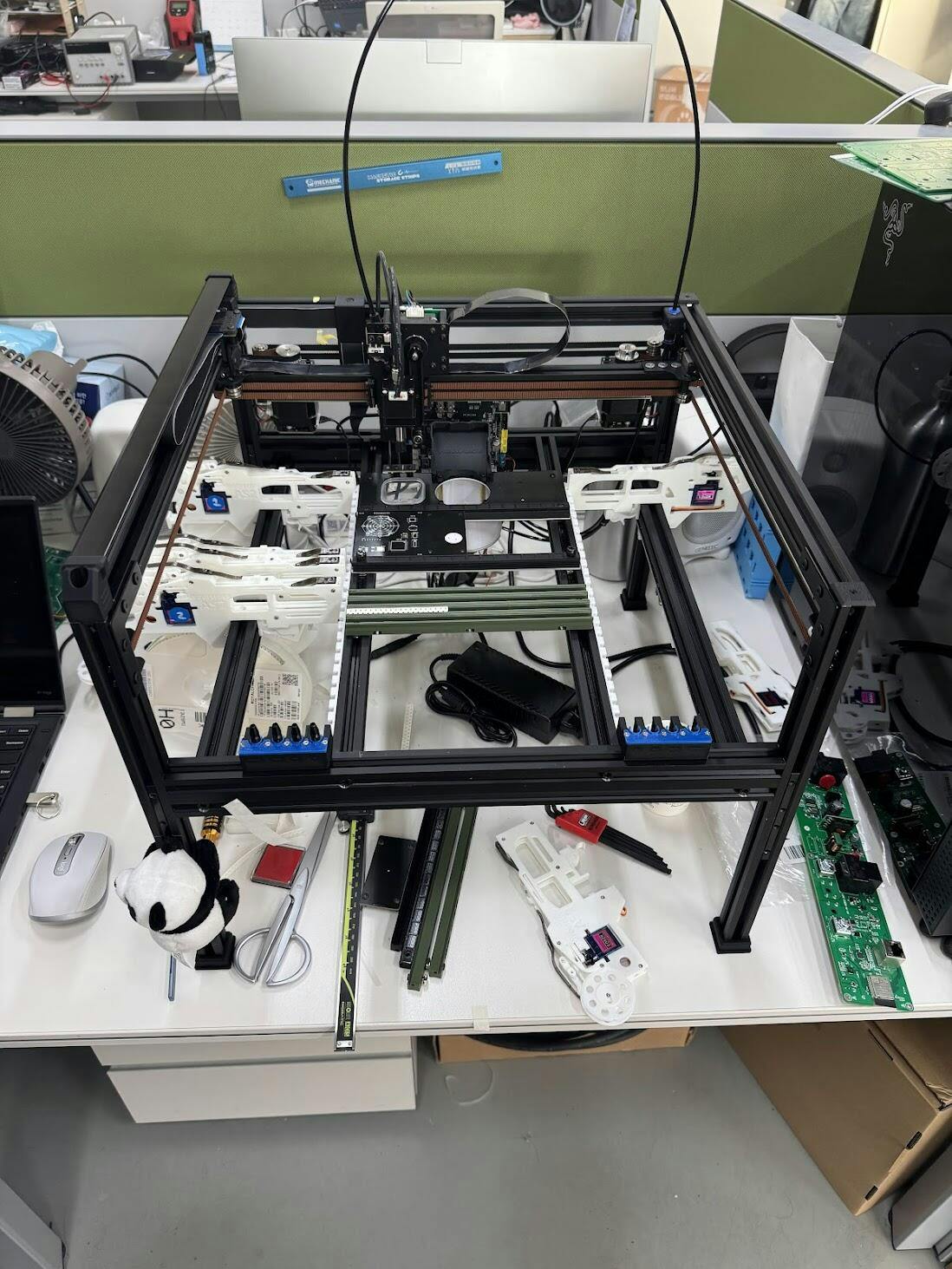

Pandaplacer CC1 Desktop Pick And Place Machine for OpenPnP

Pandaplacer CC1 Desktop Pick And Place Machine for OpenPnP

Note:

AS2 Feeder Kit Pack:
Each pack of parts contains 10 sets of AS2 accessories (excluding 3D printed parts) and 10 AS2 feeders can be assembled.

The products include all the parts and accessories of the machine, you will get all the product features.

- 90% pre-assembled for quick start out of the box.

- All moving parts are made of metal to ensure high rigidity.

- Precisely machined aluminum profiles make assembly easy.

- Precision linear rails ensure accuracy and durability.

- Low noise and high performance stepper drives.

- Takes only a small desktop area (footprint size approx. 460*470 mm).

- Up to 50 (25*2) 8mm feeder position.

- Only one power cable and one USB cable are needed to drive the machine (including all feeders) .

- Low noise micro vacuum pump.

- Vacuum bottle for better vacuum performance.

- Vacuum sensor that can be used optionally.

- With top camera and bottom camera, support PCB calibration and component calibration (from 0402).

- Provide a set of CN nozzles: CN040 CN065 CN140 CN220 CN400 CN750

- Power adapter AC110-240V, output 24V5A.

- Shipping:
Default shipping with UPS/FEDEX/DHL. Users need to pay tariffs and VAT fees according to local customs regulations when receiving the goods.
There are also shipping methods with pre-paid tariffs, you need to communicate with the seller in advance: sales@pandaplacer.com
